The food and beverage, dairy, pharmaceutical, and other industries with high hygiene requirements need production systems that can not only transfer products but also be cleaned and sanitized efficiently.
Product residues left inside pumps, pipes, tanks, or process equipment can become a source of contamination. For this reason, Cleaning in Place (CIP) and Sterilization in Place (SIP) are important parts of production system management.
Although both processes can be performed without dismantling the entire equipment system, CIP and SIP serve different purposes. Understanding the differences can help companies establish cleaning and sanitation procedures that meet their process requirements.
What Is Cleaning in Place (CIP)?
Cleaning in Place (CIP) is a method of cleaning the internal surfaces of process equipment without having to dismantle all its components.
During this process, cleaning media are circulated through a system consisting of various components, such as pumps, pipes, tanks, valves, and other equipment. The objective is to remove product residues, dirt, and contaminants adhering to the internal surfaces of the system.
CIP procedures may vary from one facility to another. However, the process generally involves several stages, including:
- Initial rinsing to remove residual product
- Circulation of the cleaning solution
- Rinsing to remove residual cleaning agents
- Inspection or verification of cleaning effectiveness
- Preparing the system for the next production cycle
The effectiveness of CIP depends on several factors, including time, temperature, cleaning agent concentration, and flow.
Adequate flow is necessary to ensure that the cleaning media pass through the entire system and help clean product-contact surfaces.
What Is Sterilization in Place (SIP)?
Unlike CIP, Sterilization in Place (SIP) is a process designed to control or eliminate microorganisms on the internal surfaces of a production system without dismantling the equipment.
SIP may use methods such as heat, steam, or other media, depending on the application’s requirements and the procedures established by the facility.
During SIP, several parameters must be consistently controlled, particularly temperature, pressure, and exposure time. Heat distribution must also be considered when high-temperature sterilization methods are used.
SIP is generally performed after the cleaning process has been completed. This is because product residues or dirt remaining on surfaces can interfere with the effectiveness of sterilization.
In other words, CIP focuses on cleaning, whereas SIP focuses on sterilization.
Differences Between CIP and SIP
The simplest distinction between CIP and SIP lies in their respective purposes.
CIP vs. SIP Comparison Table
| Comparison Aspect | CIP (Cleaning in Place) | SIP (Sterilization in Place) |
|---|---|---|
| Purpose | Cleaning | Sterilization |
| Primary Focus | Removing product residues and dirt | Eliminating or inactivating microorganisms |
| Media Used | Water or cleaning solutions | Heat, steam, or other sterilization methods |
| Key Parameters | Flow, temperature, concentration, and time | Temperature, pressure, and exposure time |
| Main Function | Cleaning internal equipment surfaces | Sterilizing internal equipment surfaces |
| Process Sequence | Generally performed before SIP | Generally performed after CIP |
Both processes serve different functions and should not be considered interchangeable.
Why Is CIP Performed Before SIP?
CIP and SIP can form part of an integrated sequence of processes.
Before sterilization takes place, the system must first be cleaned. Residual substances adhering to surfaces can interfere with sterilization and reduce its effectiveness.
For example, product residues adhering to the internal surfaces of pipes or pumps can create a barrier between the sterilization medium and the surfaces that need to be sterilized.
Therefore, the process sequence should be designed according to the facility’s requirements and applicable procedures.
Not every production system requires SIP. The need for sterilization depends on the type of product, the risk of contamination, industry standards, and the sanitation procedures in place.

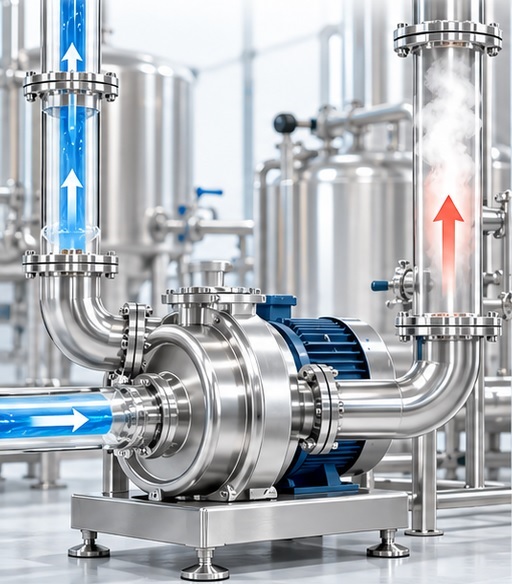

The Role of Pumps in CIP and SIP Systems
Pumps play an important role in sanitary processing systems because they are used to transfer products and help circulate cleaning media during cleaning operations.
During CIP, pumps must be capable of supporting the circulation of cleaning media according to the system’s requirements. Flow rate is an important parameter because insufficient flow can affect cleaning effectiveness.
However, excessively high flow rates should also be avoided if they cause system pressure or loads to exceed specified limits.
For SIP, attention must also be given to the ability of system components to withstand sterilization conditions. Temperature, pressure, sterilization media, seals, gaskets, and construction materials must be evaluated according to the equipment specifications.
Therefore, selecting a pump for a sanitary system involves more than considering its product transfer capacity.
How to Select the Right Pump
Pump selection should begin with the process requirements rather than relying solely on the product name or industry type.
Information such as fluid type, flow rate, pressure, temperature, viscosity, cleaning agent characteristics, and CIP/SIP procedures should be prepared before selecting the equipment.
For facilities operating processes with sanitary requirements, the entire system must also be considered. Pumps need to work in conjunction with pipes, valves, tanks, heat exchangers, and other components to ensure that both production and cleaning operations meet the required conditions.
Pumping Solutions for Industrial Applications
Every facility has different process requirements. Therefore, sanitary pump selection must be tailored to the fluid characteristics and the cleaning and sanitation procedures in place.
Winston Indonesia provides a range of pumping solutions and process equipment for industrial applications. The available product information can serve as an initial reference for companies evaluating pumping solutions based on their application requirements.
Before selecting a product, it is advisable to prepare process data such as flow rate, pressure, temperature, fluid type, and CIP or SIP requirements. This information helps make the selection process more structured and better aligned with actual operating conditions.
For further information and technical consultation, please Contact Us to discuss your requirements with our team.
