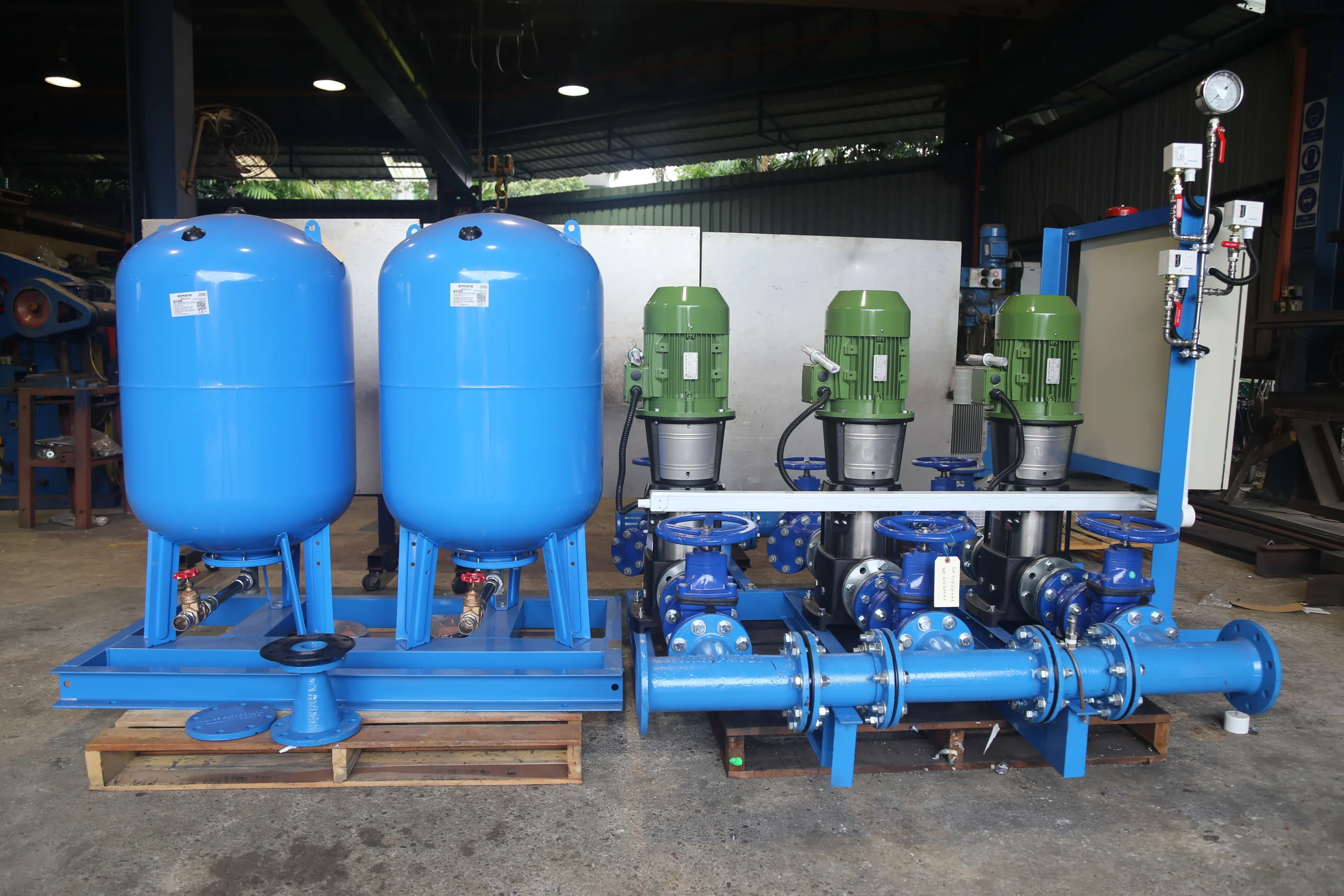

Pumping System: Design, Selection, and Maintenance Guide

A pumping system is the backbone of many manufacturing and industrial operations, ensuring reliable fluid transfer, energy efficiency, and production uptime. Choosing the right system and maintaining it properly is crucial for performance, cost savings, and safety.

Key Factors When Designing a Pumping System

1. Fluid Characteristics

The fluid being pumped determines material compatibility, pump type, and safety measures. Consider:

• Viscosity – thicker fluids like oil or syrup require positive displacement pumps.

• Corrosiveness – aggressive chemicals may demand stainless steel, Hastelloy, or engineered plastics.

• Abrasiveness – slurries and wastewater often require abrasion-resistant impellers.

• Temperature & pressure – influence seal selection and cooling needs.

2. System Design Parameters

• Flow rate – define current and future capacity requirements.

• Total Dynamic Head (TDH) – includes static head (height difference), friction losses, and pressure demands.

• Piping layout – minimise friction losses while ensuring accessibility for maintenance.

3. Pump Selection & Configuration

• Centrifugal pumps – ideal for high-flow, moderate-pressure duties.

• Positive displacement pumps – suitable for viscous fluids and precise dosing.

• Redundancy – critical processes often require standby pumps or N+1 configurations.

• Arrangement – parallel pumps handle variable flow; series pumps achieve higher pressure.

4. Control & Monitoring

Modern pumping systems benefit from:

• Variable Frequency Drives (VFDs) – improve energy efficiency and match demand.

• Automation & sensors – monitor flow, pressure, and temperature with alarm systems.

• Integration – link with PLCs or DCS for centralised plant control.

5. Infrastructure & Safety

• Ensure suitable power supply and motor protection.

• Provide ventilation, drainage, and accessibility for maintenance.

• Incorporate safety systems – emergency shutoffs, relief valves, and spill containment.

Best Practices for Pumping System Maintenance

A well-maintained pumping system delivers long service life, reliability, and reduced operating costs.

1. Preventive Maintenance

• Scheduled lubrication of bearings.

• Seal and gasket inspections.

• Alignment checks between motor and pump shafts.

• Vibration monitoring to detect early faults.

2. Predictive Maintenance

• Vibration analysis – identifies imbalance, cavitation, or bearing wear.

• Thermal imaging – detects overheating in motors and bearings.

• Oil analysis – tracks contamination and wear.

• Performance monitoring – compares flow, head, and power usage against benchmarks.

3. Spare Parts Management

• Keep critical spares such as seals, bearings, and impellers.

• For mission-critical pumps, maintain full standby units for rapid replacement.

4. Operator Training & Procedures

• Train staff on correct startup/shutdown.

• Establish protocols for alarm response.

• Conduct regular inspections for leaks, unusual noises, or abnormal vibrations.

5. Documentation & Records

Maintain up-to-date:

• As-built drawings and manuals.

• Maintenance logs and inspection records.

• Performance history to support troubleshooting and upgrades.

Conclusion

The success of a manufacturing facility depends heavily on a reliable and efficient pumping system. By carefully considering design factors, selecting the right equipment, and implementing robust maintenance practices, companies can reduce energy costs, minimise downtime, and ensure long-term operational success.
