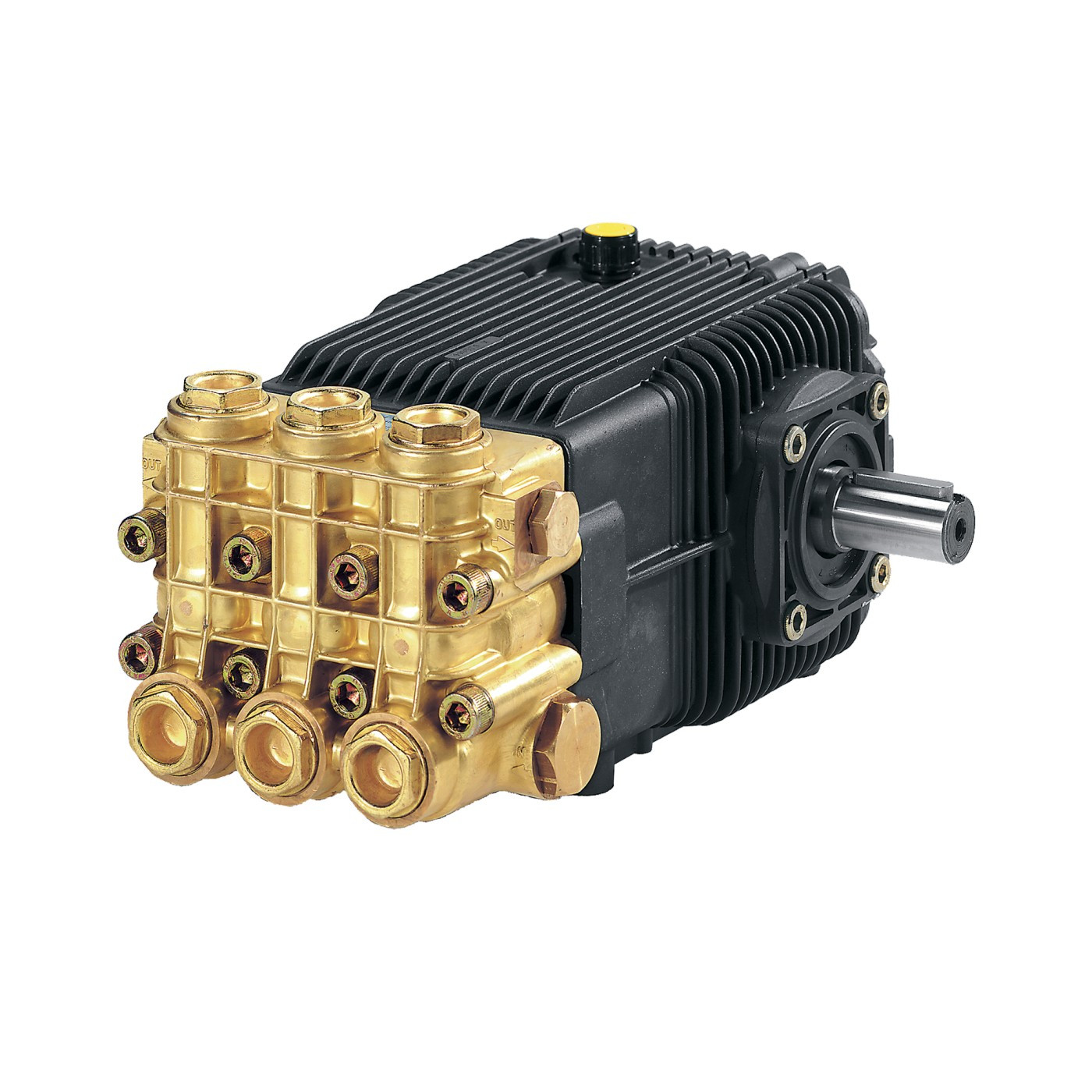

XW SERIES

The Annovi XW Series features 3-piston volumetric pumps for cleaning units and industrial systems. They boast a durable die-cast aluminum body, pressed brass head, double gasket sealing, and ceramic pistons. Designed for clear water up to 60°C, these pumps deliver flows of 15-30 l/min and pressures from 100-300 bar.



3-piston alternating volumetric pumps for use on cleaning units and industrial systems.Can be coupled to various types of motors, directly or with flexible joint. Pump body and cover in die-cast aluminium alloy. Side cover may be blind or incorporate oil sight glass. Rear cover with oil drain outlet and sight glass. Pistons driven by crank-connecting rod mechanism. Pump shaft in pressed high-strength steel. Oversized friction bearings. Connecting rods in die-cast special low-friction zinc-aluminium alloy. One-piece ceramic pistons. Pump head in pressed brass. On request nichel-plated brass pump head. Double gasket sealing system. Intake and delivery valves have plugs for easier maintenance.

Pumped liquid characteristics

Liquid temperature range

Max. liquid temperature 60 deg c

Maximum ambient temperature

Flows

Pressure

Download Links
