Liquid Ring Vacuum Pump

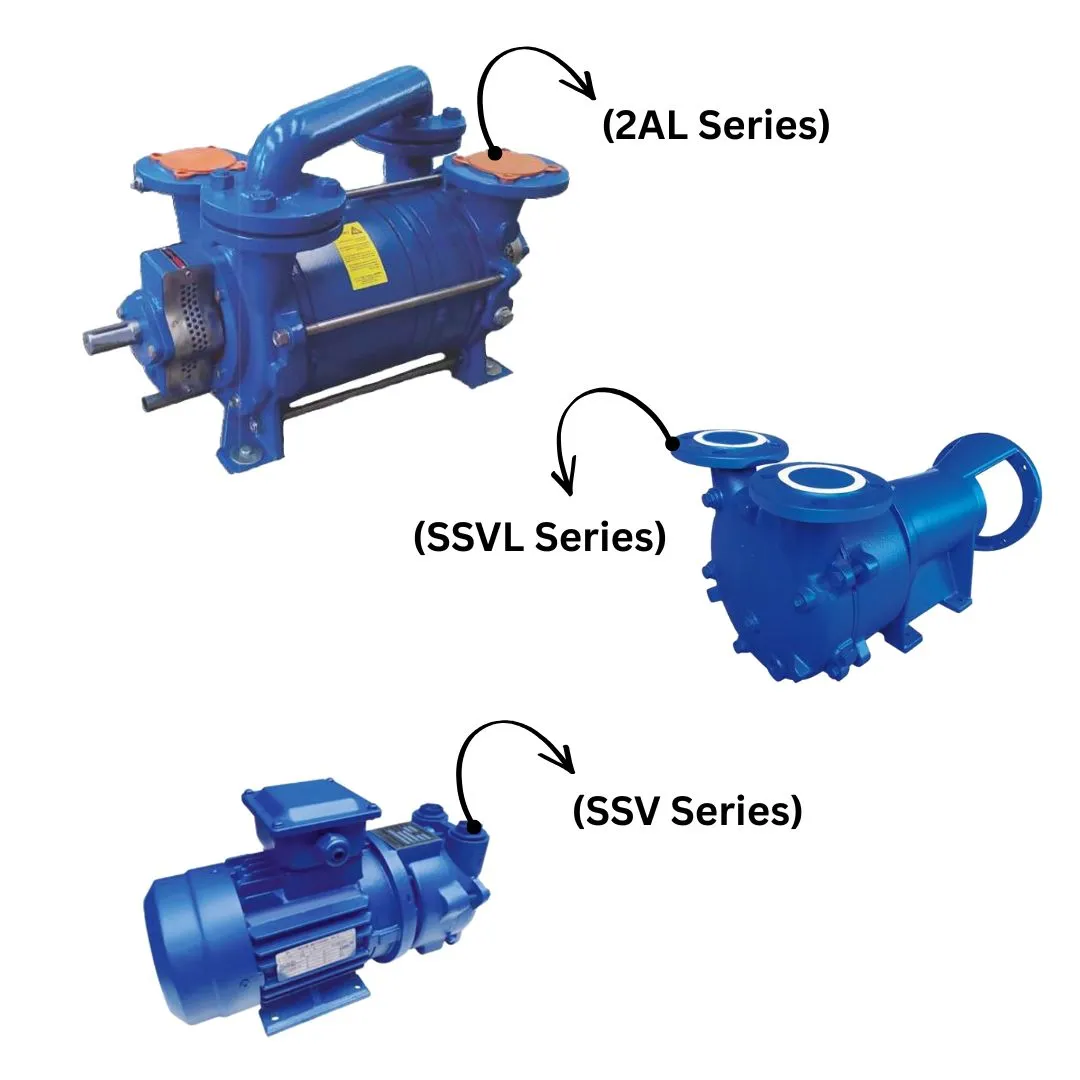

Discover the comprehensive range of Emmecom-Asia Liquid Ring Vacuum Pumps, offering robust and reliable solutions for diverse industrial vacuum requirements. Emmecm 2AL Series Two-Stage pumps are engineered for demanding applications requiring deep vacuum, while our SSV & SSVL Series Single-Stage pumps provide efficient and dependable performance for a wide array of general vacuum needs.

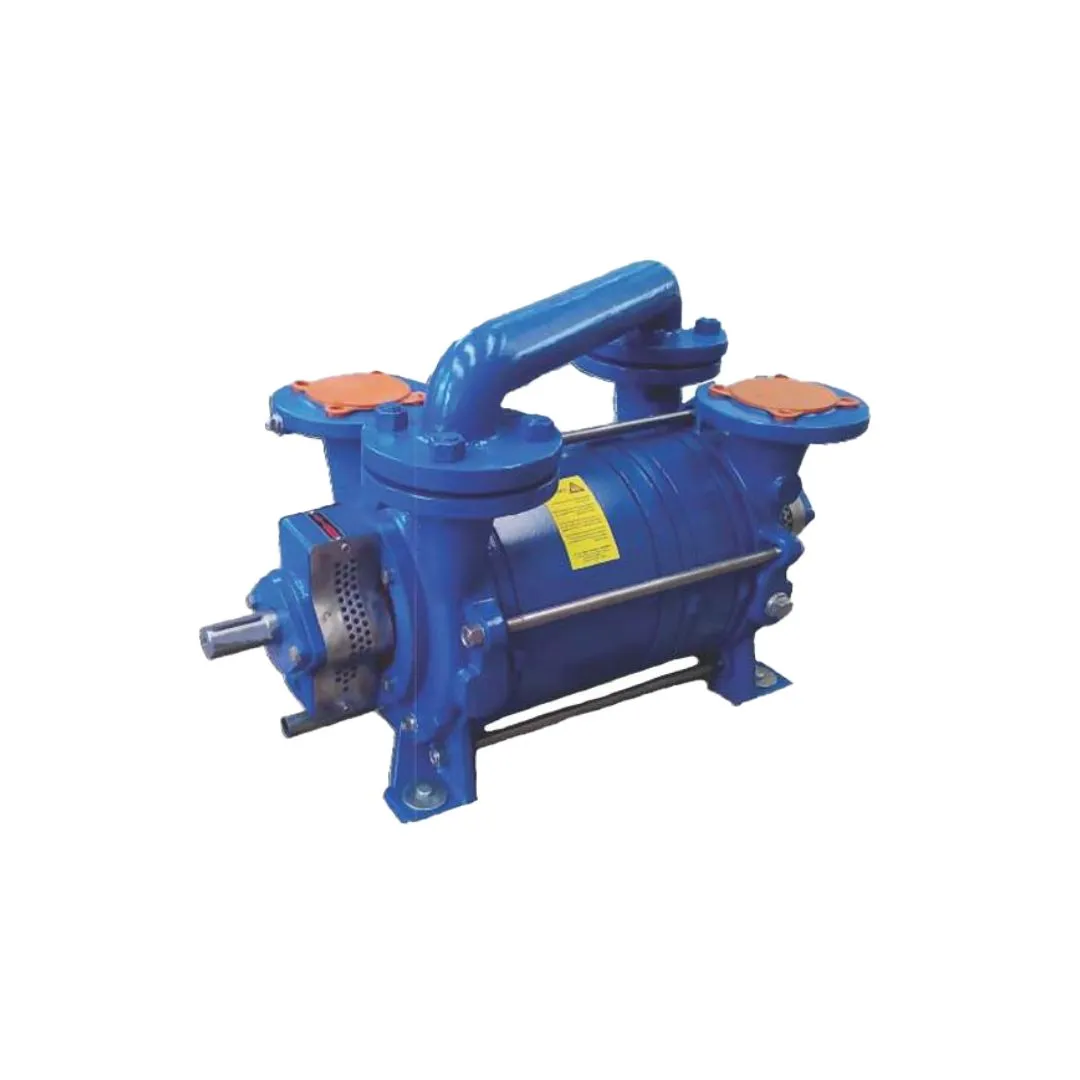

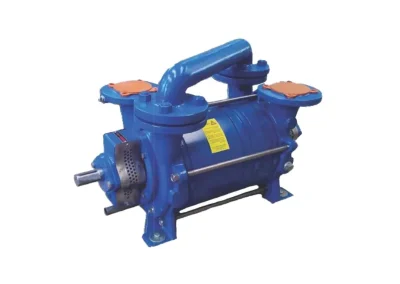

2AL Series Two-Stage Liquid Ring Vacuum Pumps:

Designed for the most critical and challenging environments, the 2AL Series excels in handling contaminated, aggressive, and explosive gas mixtures and vapors.

  • Exceptional Vacuum Depth: Achieves impressive suction down to 33 mbar (absolute), with capability to reach an ultimate vacuum of 7 mbar when equipped with an ejector.
  • Built for Durability: Features an “In-Between Bearings” design for superior resistance to cavitation and vibration, ensuring prolonged operational life.
  • Corrosion Resistance: Impeller and port plate are standard in high-grade stainless steel for optimal performance in harsh chemical processes.
  • Clean & Quiet Operation: Provides oil-free, low-vibration, and silent performance, maintaining process integrity and a comfortable work environment.
  • High Reliability, Low Maintenance: Simple design with only one moving part (the impeller) minimizes maintenance requirements and maximizes uptime.
  • Wide Flow Rate Range: Available in 11 models from 3 to 55 kW, with flow rates from 300 to 1700 m³/hr.

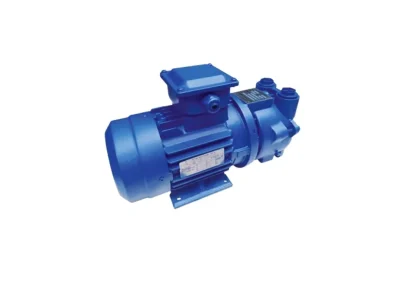

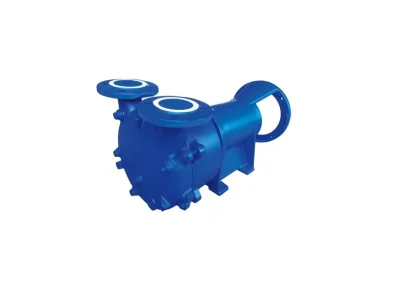

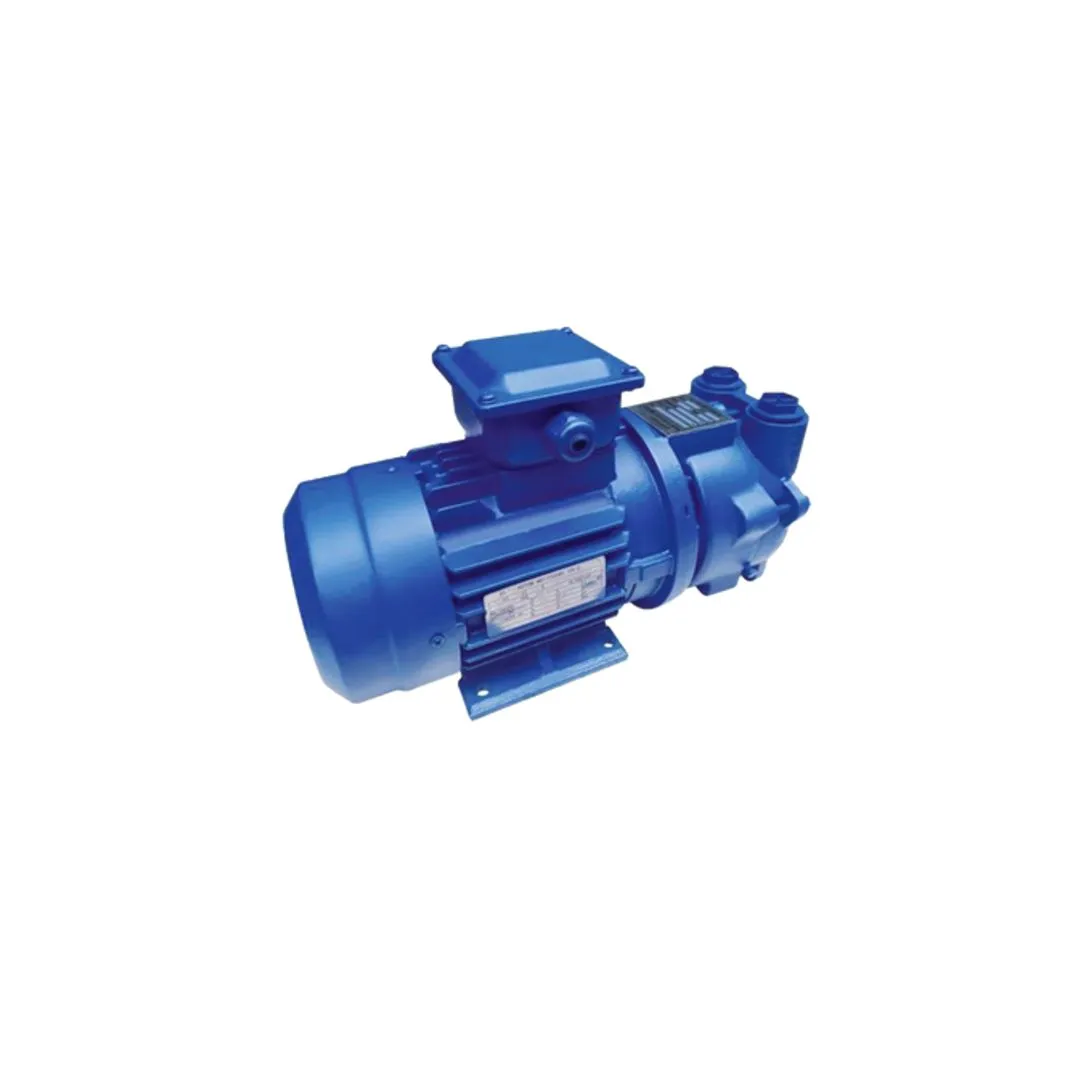

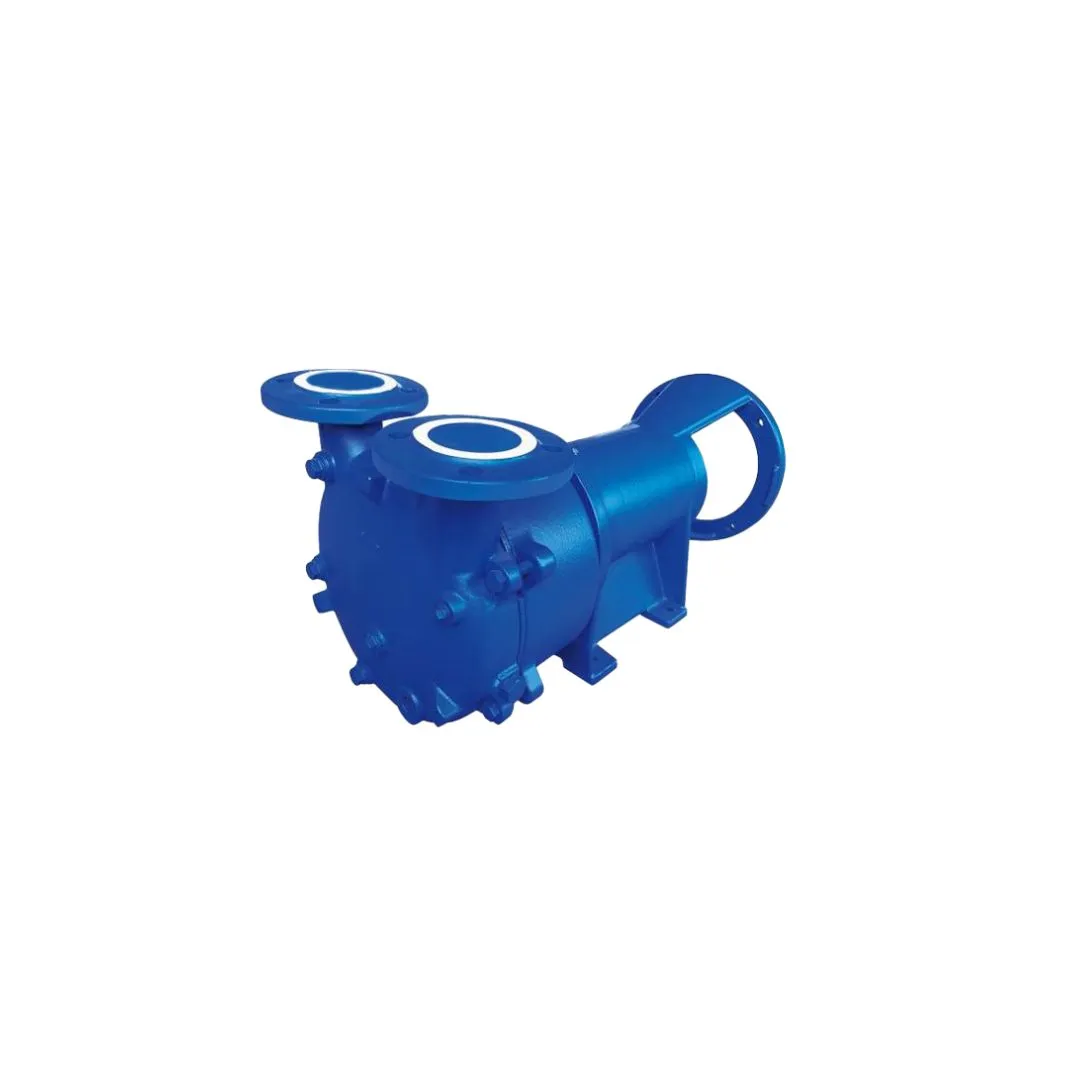

SSV & SSVL Series Single-Stage Liquid Ring Vacuum Pumps:

The SSV & SSVL Series offers a simple, robust, and versatile solution for various industrial applications, characterized by their high efficiency and ease of maintenance.

  • Nearly Isothermal Compression: Ensures efficient and stable performance by maintaining a consistent temperature during operation.
  • Oil-Free & Non-Polluting: The working chamber is free from oil lubrication, preventing contamination and ensuring environmentally friendly operation.
  • Versatile Gas Handling: Capable of handling a wide variety of gases and vapors, along with associated liquid carry-over.
  • Low Noise & Vibration: Designed for quiet operation with minimal vibration, enhancing workplace comfort.
  • Cavitation Protection: Equipped with standard protection against cavitation, improving durability and consistent performance.
  • Easy Maintenance: Features an incorporated dirt drain for simplified maintenance and optimized performance.
  • No Metallic Contact: The design ensures no metallic contact between rotating parts, minimizing friction and extending pump lifespan.
  • Broad Capacity Range: Suction capacities from 24 to 470 m³/hr, with ultimate vacuum typically ranging from 33 to 1013 mbar (absolute).



Choose Emmecom-Asia for Your Vacuum Needs:

Whether your application demands extreme vacuum levels or reliable general-purpose vacuum, Emmecom-Asia’s 2AL and SSV series liquid ring vacuum pumps provide the efficiency, durability, and performance you need. Invest in proven technology that delivers consistent results and contributes to your operational success.
