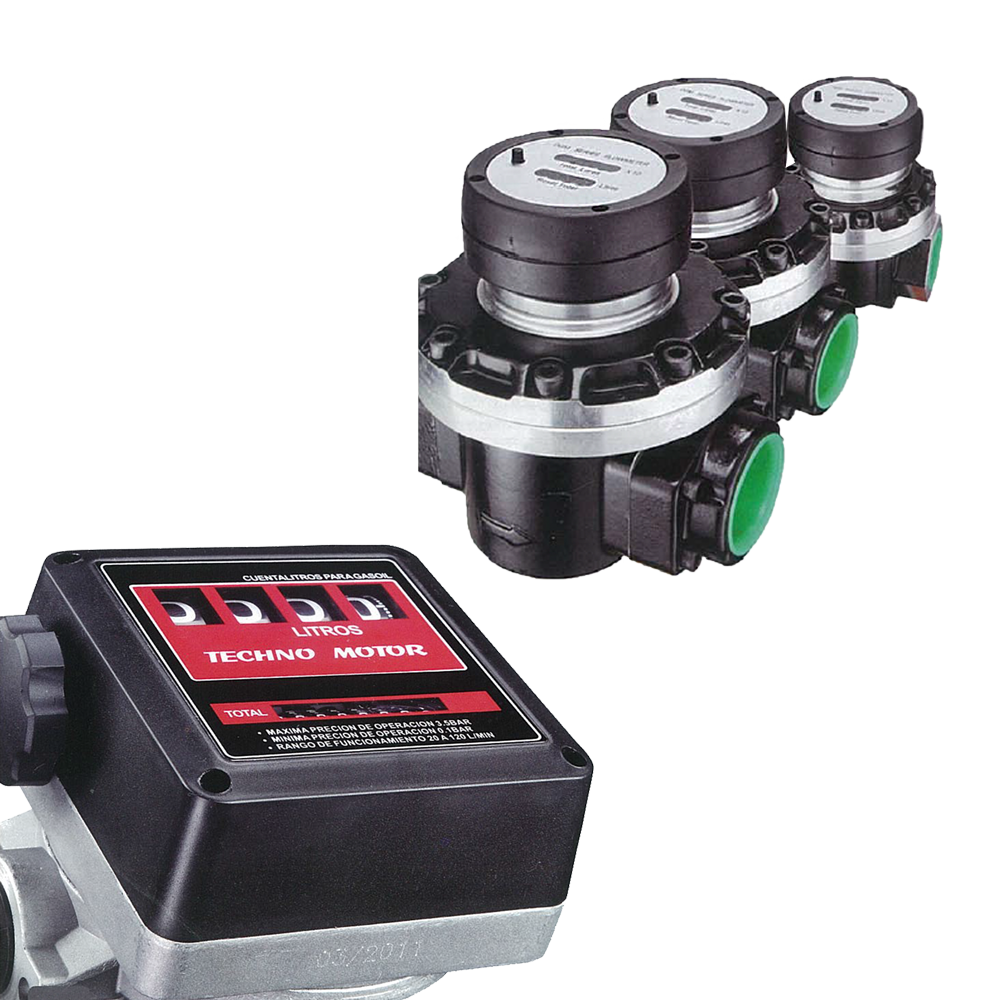

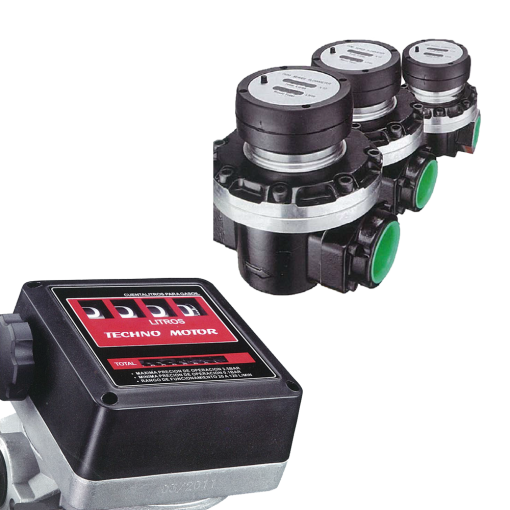

Flow Meter
The flow meter, a vital component of the Shinko Fuel Transfer Pump package, is designed to enhance your fuel dispensing process.
Description
Specification
Downloads
Features:
- Reliable Flow Monitoring
- Aluminium metering chamber
- Economical
- Easy installation & calibration
- Compatible with various types of fluids
Specifications:
- Flowrate: 20-120 litre/min
- Max.Operating pressure: 10 bar
- Bursting pressure: 30 bar
- Repeatability: 0.2%
- Resolution: 0.1 litre
- Pulser card type: “Open collector”
- Frequency: 10 pulses/liter
- Power supply: 6-24 V DC, Max.10mA
Advantages:
- Compact size, easy maintenance
- Easy to read and operate mechanical display
- Horizontally and vertically flexibility of installation options
- Low pressure drop
