Air Operated Diaphragm Pump Skid Package

Typical Application

HYDROCARBON/CHEMICAL LOADING/UNLOADING CAISSON PUMP

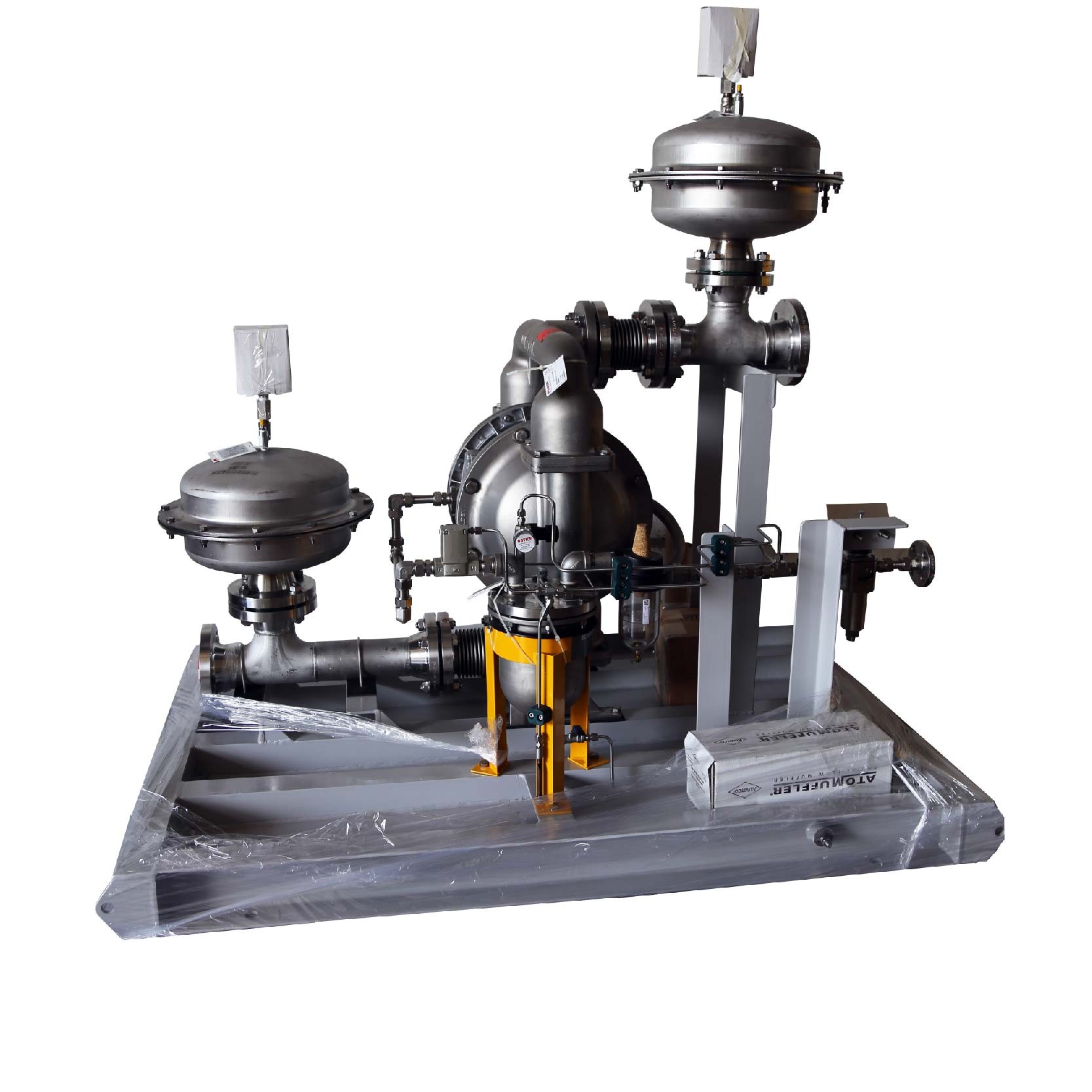

Above Air Operated Diaphragm Pump Skid is a unit designed for the transfer of Methanol and driven by Nitrogen Air. However such similar design can be used for different fluid transfers and powered pneumatically using utility air.

The skid contains a 3″ Stainless Steel Wilden pump that is ATEX certified with a max. capacity of 992 lpm . Suction and Discharge dampeners are installed to reduce pulsation and thus extending the life of the piping and pump. Optional leak containment provision is done by Blacoh’s SPILLSTOP™ which makes this package 100% pneumatically driven.

Feel free to reach out to us for your customization requirement for such skids.

Project Reference

Winston has supplied similar skids to companies such as Exxon Mobil, Shell Brunei, Foster Wheeler, Sembawang Shipyard, Amgen, Synthomer, Evonik and many others.

Technical Specifications

Maximum Flow Rate w/ 1 Pump: Max. Flow Rate: 992LPM

Maximum Working Pressure: 8.6barg

Maximum Air Consumption: 204Nm3/h

Maximum Working Temperature: 90ºC

Inlet & Outlet: 3″ ANSI 150# Rf Flange

Pneumatic Pump: XPS1530/SSAAA/TWS/TF/STF

Air-Connection: 3/4″ NPT

Material Pumps and Valves: SS316, center section/air valve: aluminium, diaphragm: PTFE with wilflex back-up, valve ball: PTFE, valve seat: SS316, valve seat o-ring: PTFE

Standard Instruments A36 skid with painting, standard instrument is Air filter regulator. Photo shown is with suction and discharge dampener and Blacoh’s SPILLSTOP™ leak containment.

Weight: 360kg

Dimension: 1580mm(L) x 1113mm(W) x ~1685mm (H)
