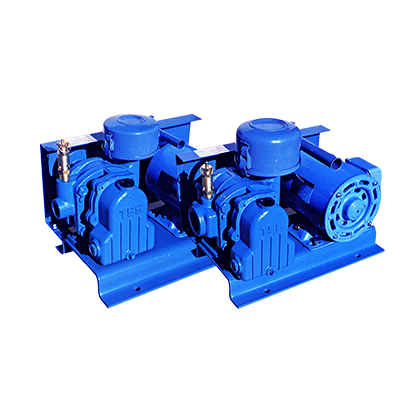

2-lobes Roots Type Blower/Vacuum Pump

Name: 2-lobes Roots Type Blower/Vacuum Pump - Winston Engineering Corporation (Pte) Ltd
Availability: OutOfStock

Enquire Now

Description

Specification

Downloads

TSS/TSA blowers fall under the very small volume class of roots type, but are given adequate considerations to details in order to provide high efficiency so that this type has superior properties of constant air capacity and low noise.

Applications	wastewater aeration, fish care, back washing, combustion a fireplace, vacuum pack for food
Bore	20 to 65A, 50 to 250A
SSR air capacity	0.8 to 56m³/min
SSR-H air capacity	0.8 to V0m³/min
SSR pressure	0.1 to 0.6kgf/cm²
SSR-H pressure	0.1~0.8kgf/cm²
Required motor power	0.4 to 3.7kW, 0.75 to 160kW
TSS air capacity	100 to 600 l/min
TSA air capacity	0.3 to 2.7m³/min
TSS pressure	0.1 to 0.4kgf/m²
TSA pressure	0.1 to 0.5kgf/m²

Download Links

Taiko TSS_TSA Brochure
