Pompa Air Stainless, Stainless Steel Water Pumps

In today’s modern world, the demand for reliable, hygienic, and long-lasting water pumping systems continues to grow. Whether for residential, commercial, or industrial use, stainless steel water pumps have become the top choice due to their ability to deliver optimal performance with exceptional durability. Compared to pumps made of cast iron or plastic, stainless steel pumps stand out with their superior resistance to corrosion, longer service life, and capability to handle both clean water and contaminated liquids.

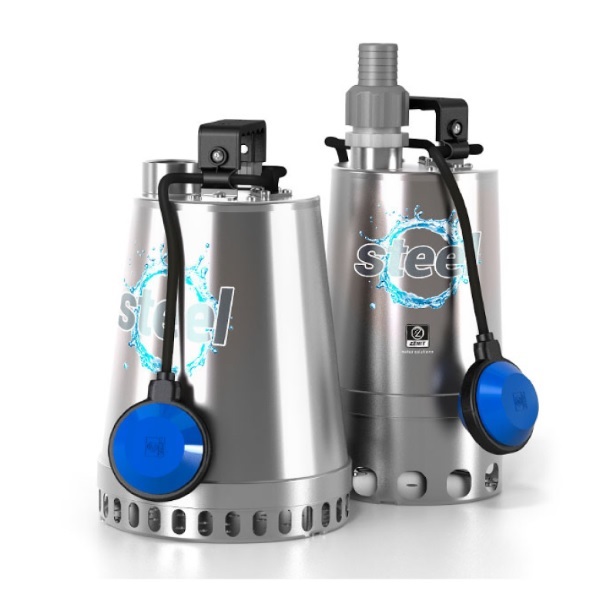

One of the leading products in this category is the Stainless Steel Submersible Pump Steel Series, officially distributed by Winston Indonesia. In this article, we will explore the advantages, specifications, and applications of stainless steel water pumps, and why they are a worthwhile long-term investment.

What is a Stainless Steel Water Pump?

A stainless steel water pump is a type of pump that uses stainless steel material for its main components, such as the casing, impeller, and shaft. This material provides superior resistance to rust, corrosion, and contamination, making it suitable for both clean water and wastewater applications.

Key benefits of stainless steel include:

  • High resistance to water, light chemicals, and abrasion.

  • Hygienic surface, easy to clean, making it ideal for food, pharmaceutical, and household applications.

  • Longer service life, as components are more durable and less prone to damage.

Stainless Steel Submersible Pump Steel Series Variants

The Steel Series offers two main variants, each designed for different field requirements:

  • DRENO (DR Stainless)

    • Equipped with a double-channel open impeller.

    • Suitable for applications with clean or lightly contaminated water.

    • Flexible, as it can operate even when only partially submerged.

  • DRAGA (DG Stainless)

    • Uses a vortex impeller designed to handle heavily contaminated water and solid particles.

    • Capable of passing solids up to 40 mm in size.

    • Suitable for wastewater, drainage, and applications requiring solid-handling capability.

Key Technical Specifications

Based on product data:

  • Maximum Flow Rate: 335 liters/min (DR) and up to 375 liters/min (DG).

  • Maximum Head/Pressure: 16 meters (DR) and 10 meters (DG).

  • Main Material: Stainless steel AISI 304 and AISI 316 for casing, impeller, and motor housing.

  • Solid Handling Capacity: DR – up to 12 mm, DG – up to 40 mm.

  • Operating Temperature: Up to 40°C (and up to 90°C for 3 minutes).

  • Maximum Depth: 10 meters.

  • Noise Level: <70 dB, ensuring comfortable operation.

Each unit undergoes pressure testing to ensure the tightness of gaskets, cable glands, and mechanical seals for safe operation.

Advantages of Stainless Steel Water Pumps

  1. Corrosion and Abrasion Resistance
    Stainless steel construction makes the pump resistant to rust and abrasion caused by solid particles. This is especially important in drainage or wastewater applications.

  2. Flexible Applications

    • DRENO can operate even when partially submerged.

    • DRAGA performs optimally in contaminated water with solids, making it suitable for construction, mining, and industrial use.

  3. Efficiency and Easy Maintenance
    The internal cooling system allows the pump to remain safe even when not fully submerged. The DR model can also be used as a dry-floor pump, capable of suction as low as 5 mm from the surface.

  4. Robust Construction

    • Laser-welded impellers provide extra strength.

    • Double mechanical seals protect the motor from leaks.

    • Compact design makes installation easy, even in tight spaces.

  5. Eco-Friendly and Hygienic
    The smooth stainless surface prevents dirt buildup, ensuring higher hygiene standards. This makes it suitable for clean water as well as civil installations requiring strict sanitation.

Applications of Stainless Steel Water Pumps

Stainless steel pumps are widely used across different sectors:

  • Residential:

    • Basement or well drainage.

    • Rainwater removal in flood-prone areas.

  • Civil and Commercial:

    • Drainage systems in office buildings or apartments.

    • Management of light to medium wastewater.

  • Industrial:

    • Food and pharmaceutical processing plants (requiring high hygiene).

    • Flood control and emergency systems.

    • Construction and mining (handling slurry or sand-mixed water).

  • Marine and Fisheries:

    • Seawater transfer (FS series, designed specifically for saltwater).

    • Pond or aquaculture drainage.

Comparison with Non-Stainless Steel Pumps

  • Cast Iron Pumps: Cheaper, but prone to rust when exposed to wastewater or seawater.

  • Plastic Pumps: Lightweight and rust-free, but far less durable than stainless steel.

  • Stainless Steel Pumps: Higher upfront investment, but longer lifespan and reliable in extreme conditions.

Tips for Choosing a Stainless Steel Water Pump

  • Application Type: Choose DR for clean or lightly contaminated water, DG for wastewater with solids.

  • Flow Rate: Calculate the required liters per minute based on usage.

  • Maximum Head: Ensure it meets the pumping height requirements.

  • Material Quality: Select AISI 316 stainless for aggressive liquids or seawater.

  • Serviceability: Opt for modular designs with easily available spare parts.

Stainless steel pumps from the Steel Series offer reliable, hygienic, and versatile solutions for a wide range of needs—from households to heavy industries. With DRENO for clean or lightly contaminated water, and DRAGA for solid-laden wastewater, these pumps are designed to tackle diverse operational challenges.

Thanks to corrosion-resistant materials, efficient cooling systems, and high performance, stainless steel pumps are not just ordinary pumping equipment but a long-term investment that reduces maintenance costs while ensuring dependable operation.

If you are looking for a water pump that is durable, hygienic, and capable of withstanding extreme conditions, a stainless steel water pump is the best choice.
