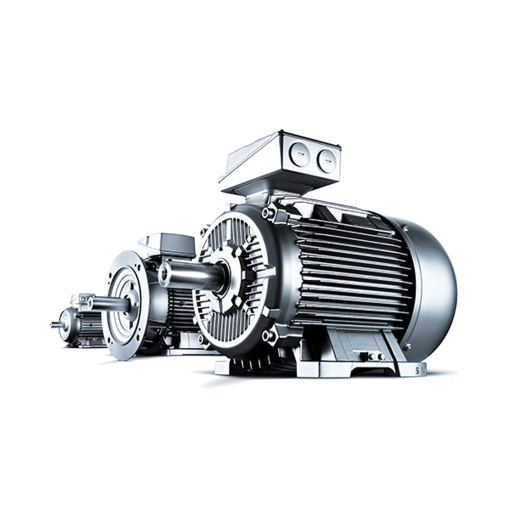

AC Motors: Delivering Unmatched Precision, Reliability, and Performance

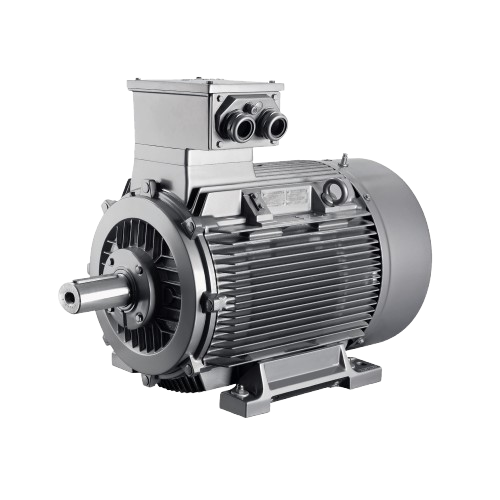

What is an AC Motor?

An AC motor is an electric motor that converts alternating current (AC) into mechanical power. It consists of two main components — the stator (stationary outer part) and the rotor (rotating inner part).

When alternating current flows through the stator’s coils, it generates a rotating magnetic field. This field induces a current in the rotor, creating its own magnetic field. The interaction between these magnetic fields produces torque, causing the rotor to spin and generate mechanical motion.

How Do AC Motors Work?

The operation of a typical AC induction motor is based on electromagnetic induction. As alternating current passes through the stator windings, it creates a continuously rotating magnetic field.

This rotating field induces a current in the rotor’s conductors, which in turn generates another magnetic field. The rotor’s magnetic field tries to align with the stator’s rotating field, causing the rotor to spin.

The difference in speed between the rotating magnetic field and the actual rotor speed is known as “slip.” Slip is essential, as it allows the motor to produce the torque needed for motion.

Applications and Benefits of AC Motors

AC motors are the backbone of modern industry, valued for their efficiency, reliability, and versatility. They are commonly used in:

• Pumps and Fans: Reliable power for HVAC systems, water treatment plants, and industrial ventilation.

• Compressors: Driving air and gas compressors in manufacturing and processing facilities.

• Conveyors and Material Handling: Enabling smooth and efficient transport of goods in logistics and automation systems.

• Machine Tools: Delivering precision and torque for machining and production operations.

Key Benefits:

• High Efficiency: Designed to meet and exceed global standards (up to IE4), providing energy savings and lower operational costs.

• Durability and Low Maintenance: Brushless design with fewer moving parts ensures long service life and minimal upkeep.

• Robust Construction: Typically rated IP55 for protection against dust and water, ideal for demanding industrial environments.

• Versatility: Available in a wide range of power ratings, voltages, and speeds to suit diverse applications.

• Self-Starting Capability: Three-phase AC motors generate their own rotating magnetic field, eliminating the need for external starting systems.

Startup Considerations

During startup, AC motors draw a high inrush current, typically 7–8 times their full-load current. This surge can cause a temporary voltage drop (voltage sag) in the electrical network, potentially affecting other equipment.

Mitigation Methods:

• Soft Starters: Gradually increase the voltage supplied to the motor, reducing the initial current spike.

• Variable Frequency Drives (VFDs): Slowly ramp up both voltage and frequency, providing precise control and smoother acceleration.

Benefits of Using Soft Starters or VFDs:

• Extend the life of the motor and connected machinery.

• Protect the electrical system from overload stress.

• Minimize mechanical shock to driven loads.
